Soca to Truecon Break in Cable TR311-1-BLK
Soca to Truecon Break in Cable TR311-1-BLK

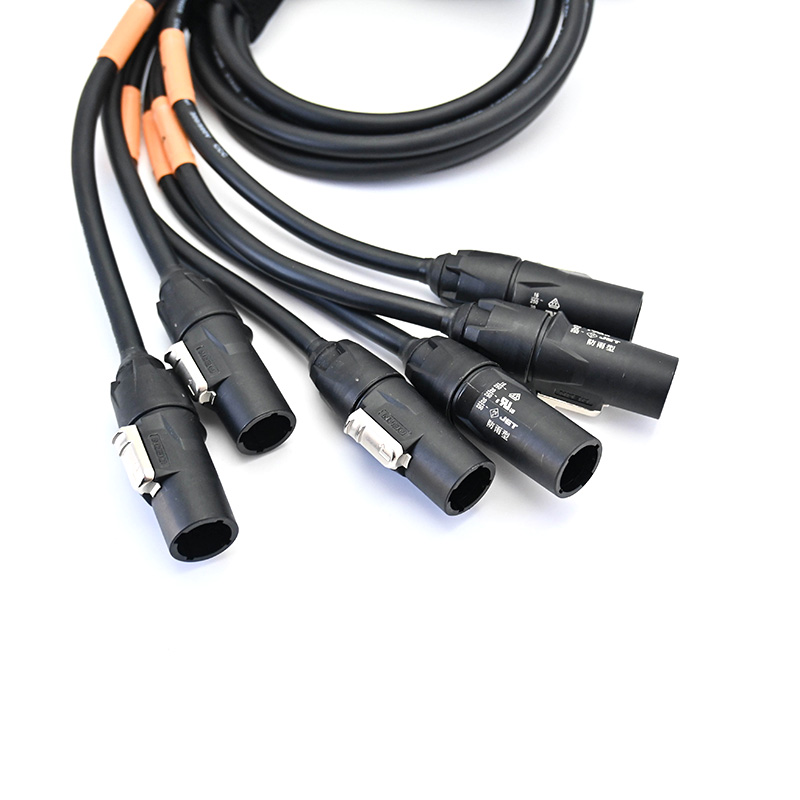

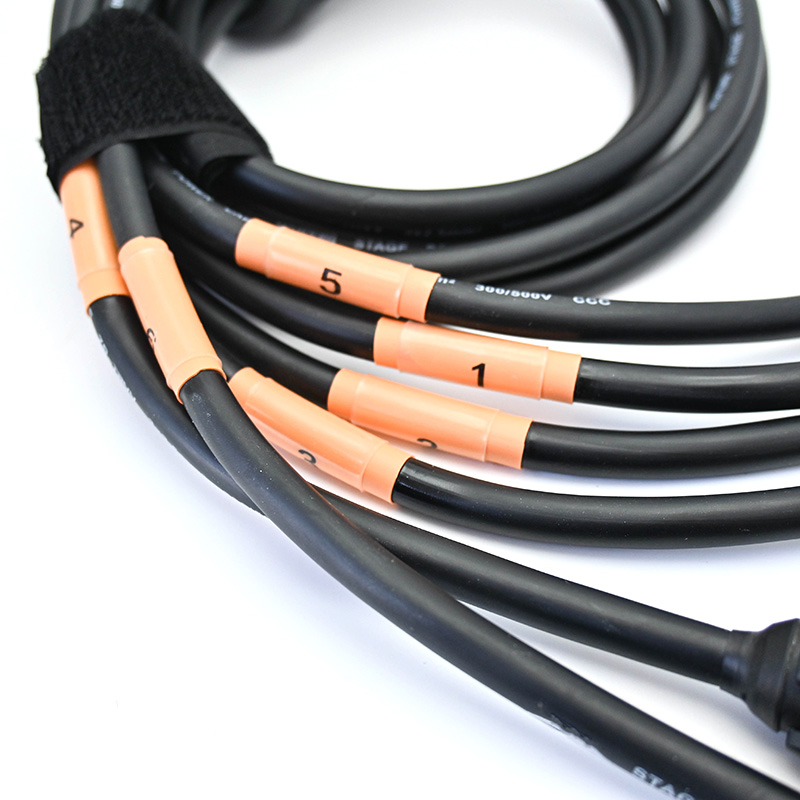

This IP65 19-pin soca fan in cable is widely used in lighting power distribution systems. It combines a 19-pin soca female connector with 6 ways of turecon male 3x2.5mm2 cables.
This cable is waterproof IP65 rated. Rated current: 20 amps (2.5mm²)
This cable is waterproof IP65 rated. Rated current: 20 amps (2.5mm²)
Quantity
-
Detail
Description
This IP65 soca break in cable features a 19-pin soca female connector with TUV ETL CE certification and truecon male cable. Its flexible cable (H05VV5-F) maintains high flexibility even in low-temperature environments.
With a wire gauge of 3x2.5mm² and a rated current load of 20 amps, it is widely used in outdoor and indoor stage touring lighting, audio, and speaker main power distribution systems.
Technical Characteristics
Plug/end Terminal Side A:
Certified 19 Pin Soca Female ConnectorPlug/end Terminal Side B:
Truecon MaleType:
AC Main Power Distro Cable
Conductor:
Bare copperApproval:
CE, RoHSOperation Temperature:
-25℃~75℃Length:
1mCable Size:
3x2.5mm²
Cable Type:
H05VV5-F
Feature
High Flexible in low temp
Bare Copper Conductor
IP65 Waterproof
Oil Resistant
Flame Retardant -
