What Are the Different Types of Socapex Connectors?

1. Introduction

Socapex connectors are a type of multi-pin connector. Sometimes referred to as “Soca” connectors. They are professional 19-pin power connectors used in stage lighting and power distribution systems. When mated, these connectors achieve an IP67 waterproof rating.

This article will explain the main types of Socapex connectors to help users select the correct model.

2. What Is a Socapex Connector?

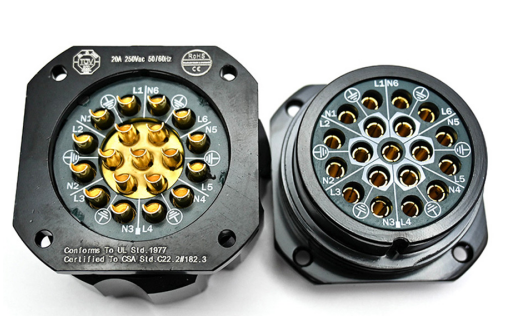

Basic Structure

The most basic structure of the Socapex series is a 19-pin configuration. It can supply up to 6 circuits.

The outside of its pins consists of 12 pins for neutral and live wires. The middle 7 pins are for ground.
For more information on Socapex cables, please refer to this article.

In terms of application, Socapex connectors are divided into inline cable connectors (plugs) for cables and panel-mount connectors (chassis).

Inline cable connectors are further subdivided into break-out type plugs and the more common extension type plugs.

In terms of termination methods, Socapex connectors are categorized as welder-type and crimp-type.

Typical Applications

The 19-pin Socapex connector is widely used in stage performances, television broadcasts, temporary lighting, and power distribution due to its ease of connection, durability, and reliability. It is favored by many lighting engineers, stage event organizers, and entertainment equipment rental companies.

3. Socapex Connector Types

Socapex Connectors by Use

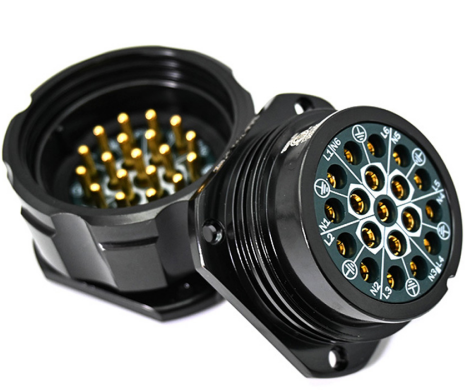

Panel Mount (Chassis)

Socapex panel mount connectors are also known as Socapex chassis connectors.

These connectors are typically mounted on the panels of entertainment equipment, such as power distribution boxes and touring racks.

Inline Connectors (Plugs)

Socapex plugs are typically used on Socapex cables, such as Socapex extension cables and Socapex breakout (fan-type) cables.

Socapex Inline Connectors by Application

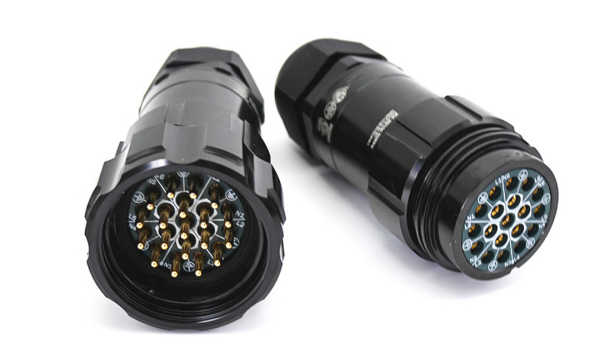

Standard Socapex Extension Connectors

Socapex extension plugs are the most basic type of connector.

They come in male and female versions for use at both ends of a Socapex extension cable.

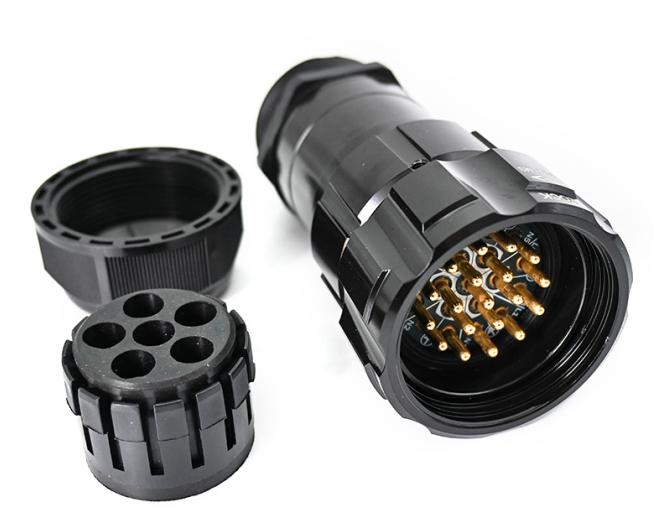

6-Way Break (Fan) Type Socapex Connectors

These connectors are used for socapex breakout (fan) in/out cables. These connectors differ from the standard type in that the matching washer at the end is a six-hole rubber washer, corresponding to the six cables extending from the connector.

These connectors are typically used in the following cable types:

• Socapex to Edison
• Socapex to Schuko
• Socapex to Powercon
• Socapex to Powercon True1



The Socapex male plug corresponds to the breakout (fan-out) configuration, while the Socapex female plug corresponds to the break-in (fan-in) configuration.

This is a common source of error, so please take note.

Socapex Connectors by Wiring Method

Crimp-Type Socapex Connectors

Crimp-type Socapex connectors are easier and faster to install.

They are also simpler and quicker to repair.

However, these connectors are more prone to failure because the connections can easily come loose when the cable is dragged or jostled.

Some rental companies may opt for this type of connector.

Solder-Type Socapex Connectors

The solder-type is the mainstream wiring method.

Wiring this type of connector takes more time.

However, if your soldering is done properly, the service life of the cable will be significantly longer than that of the crimp-type.

Most cable manufacturers prefer this type of connector.

Conclusion

Socapex connectors are primarily categorized by application into plug and chassis types.

Plugs are further classified into standard-type plugs and break (fan)-type plugs by replacing the end gasket.

In terms of wiring methods, they are categorized as crimp-type and solder-type.

We hope this article will assist you in selecting the right Socapex series connectors.
